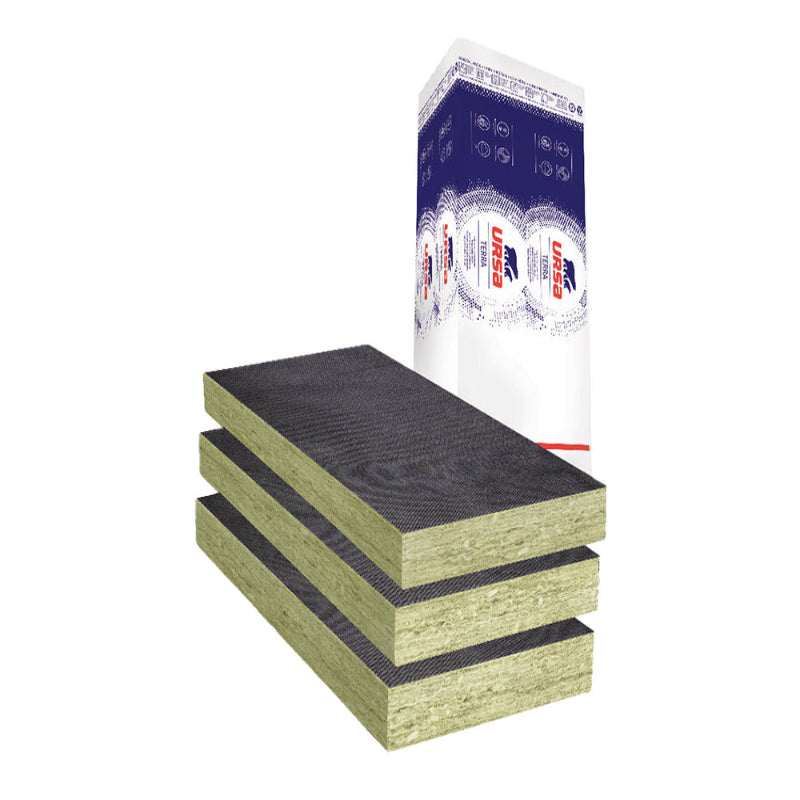

Ursa URSAPAN BLACK Insulation Slab 1350mm x 600mm x 180mm 3.24m2 (Pack of 4)

Product code: 2143741

URSAPAN BLACK is a non-combustible British Board of Agrément (BBA) approved glass mineral wool insulation slab. It is treated with a silicon-based water repellent and features a black glass fibre tissue facing on one side which is applied during the manufacturing process.

The black tissue facing provides an aesthetic solution, allowing the product to be used behind open joint cladding without being visible.

URSAPAN BLACK is used as thermal and acoustic insulation on timber frame, steel frame or masonry backgrounds with ventilated rainscreen façade systems or a masonry outer leaf. In ventilated façade systems it can be used on buildings of any height; with a masonry outer leaf buildings above 25m are subject to additional design guidance (see BBA Certificate). It is suitable for both new and existing domestic and non-domestic buildings.

Additionally, it can be used as soffit insulation.

Specifications:

• Length: 1350mm
• Width: 600mm
• Thickness: 180mm
• Slabs per pack: 4
• Pack area: 3.24m2
• Thermal conductivity: 0.035 W/mK
• Thermal resistance: 5.1 m² K/W
• Density: 22 kg/m³
• Fire classification: Euroclass A1 EN 13501-1:2018
