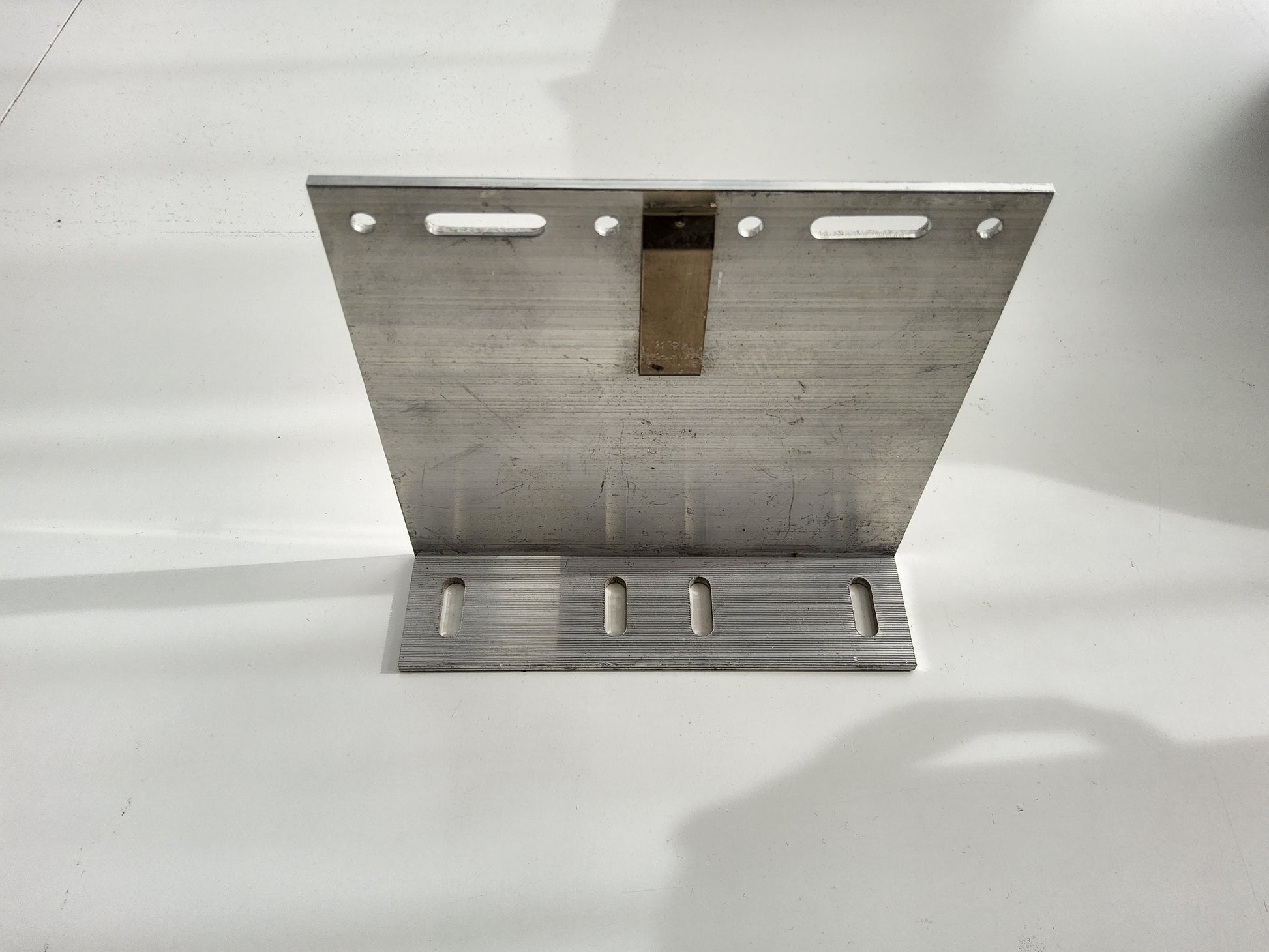

Fischer Wall Holder FLH 140x150x3/6,5/F-SP AL incl. Clip (Pack of 50)

Product code: 552228

The L-wall holder of the BWM subframe system ATK 100 made of aluminum is the basis for a façade subframe. It is fastened to the building substrate using fischer fixings. To reduce thermal bridges, thermostops made of hard-PVC can be attached to back of the wall holders. In order to enable all common insulation thicknesses and façade offsets, the wall holders are designed and manufactured in different projection lengths. To allow the thermal expansion of the profiles, the wall holders are used both as fixed and sliding points. The fixed point absorbs the entire dead loads of the façade panels and subframe system in addition to the proportional wind loads. With its slotted holes, the sliding point also ensures that the vertical profile can slide due to thermal expansion. The sliding point is also used to transfer wind loads. These fixed/sliding points suit both applications.

• The L-shaped geometry of the wall holder ensures optimised load transfer
• The combination of wall holder and vertical profile ensures optimum compensation of tolerances in the building substrate
• Compatible with all common fixings and connectors (e.g. fischer frame fixings and steel anchors)
• The predesigned hole pattern allows for quick and easy installation

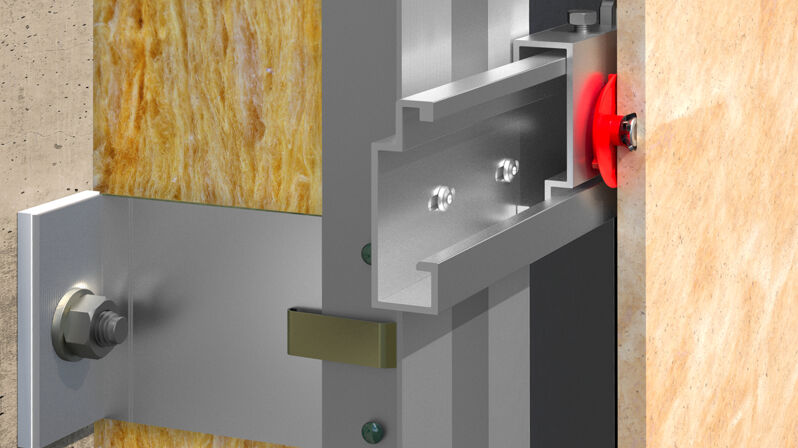

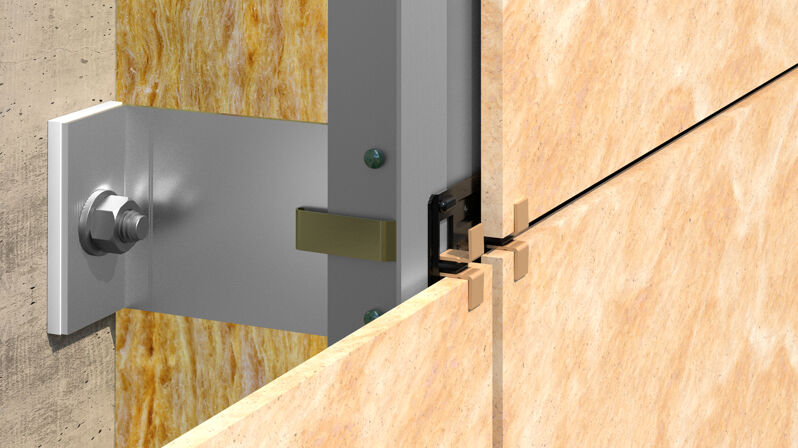

• Flexible adjustment of the vertical profile possible due to innovative helping hand clip on the wall holder
• Absorption and transfer of the occurring wind and dead loads of the façade system
• Compensation of construction tolerances possible
• Including pre-mounted helping hand clip
• Optimized for 6,5mm fixings, e.g. for anchoring in steel frame systems


Applications:

• As an angular L-shaped wall holder made of aluminium for the vertical subframe system ATK 100

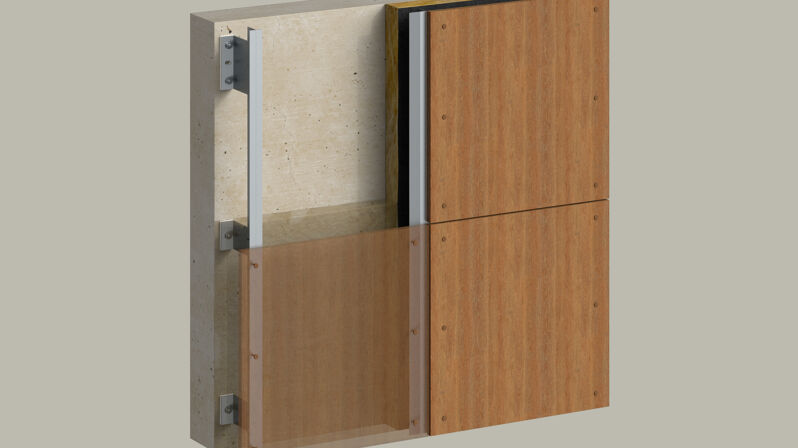

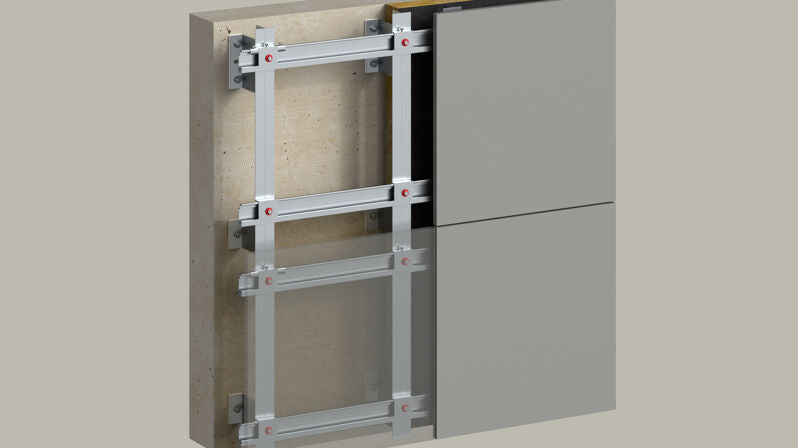

• For load transfer into the building substrate of subframe systems in ventilated rainscreen façades

Specifications:

• Length (L): 140 mm
• Width (W): 40 mm
• Height (H): 150 mm
• Thickness (T): 3 mm
• Dimensions (d): 6.5x20 mm
• Hole pattern: 4x 6.5x20 mm
• Hole pattern profile: 5x 5.1 / 2x 5.5x25 mm
• Angle: 90°
