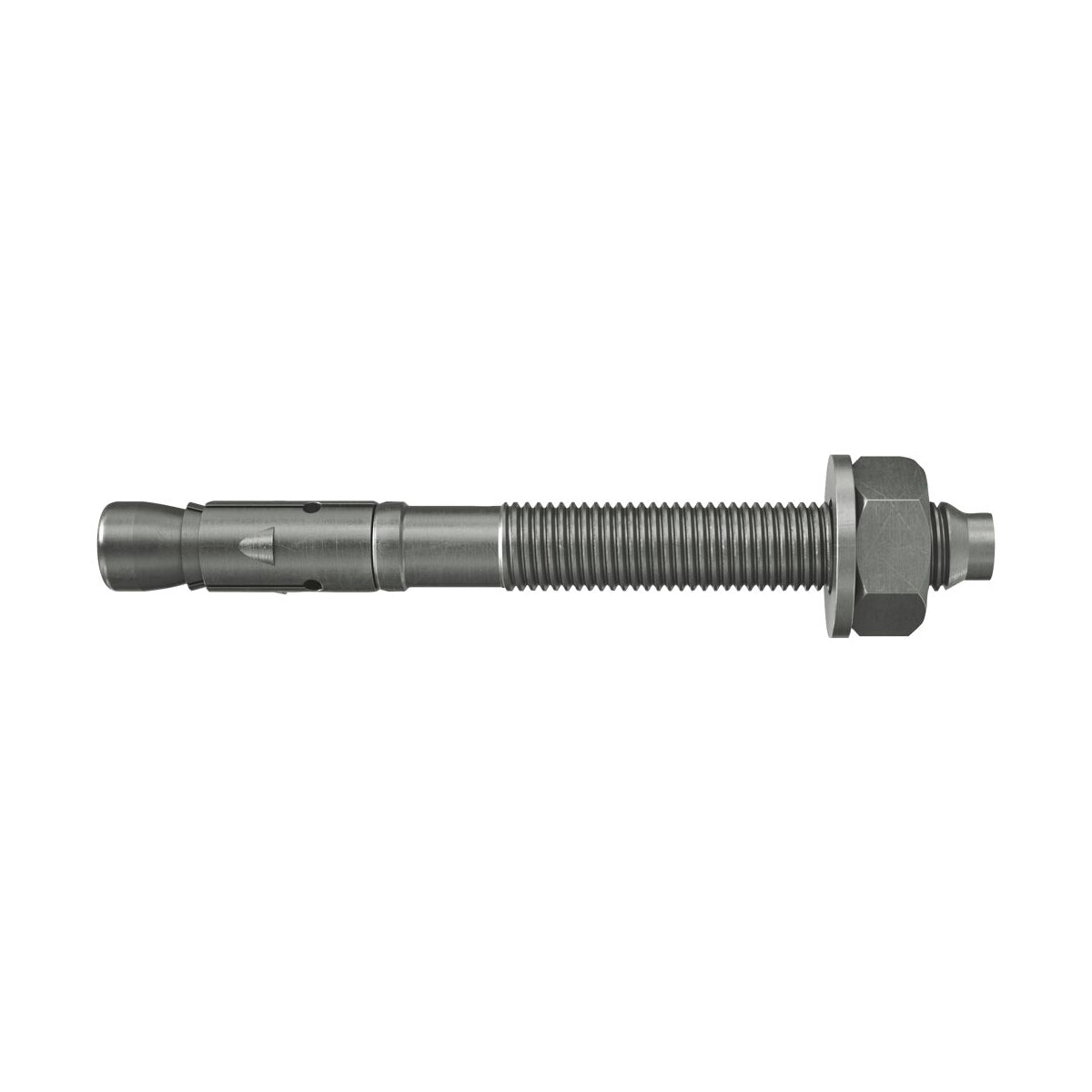

Fischer Bolt Anchor FAZ II Plus 8/10 R Stainless Steel 75mm (Pack of 50)

Product code: 564609

The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile strengths and a wide range of applications. Heavy loads can be secured in cracked concrete using the steel anchor. The FAZ II Plus is easier and faster to set due to the elimination of drill hole cleaning (M8-M24). The tried-and-tested expansion clip safely introduces the loads into the concrete and enables an immediately loadable, high load-bearing capacity. For example, the steel anchor is ideal for the anchoring of railings, cable trays, and consoles.

• Quick and easier assembly without the need for drill hole cleaning (M8-M24)
• Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use
• With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required
• The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire
• An external independent assessment confirms the service life of anchorages up to 120 years. Thus, the FAZ II Plus outlasts a whole century and is perfectly suited for large, long-lasting construction projects (M10-M16)
• The FAZ II Plus allows the absorption of high seismic loads of performance category C1 and C2 for diameters M10-M24 with and without the use of the filling disc FFD at installation
• The variable anchorage depths allow a millimetre-accurate adjustment to the loads

Specifications:

• ETA-approval: Yes
• ICC-approval: Yes
• Seismic-Approval: C1
• Drill diameter (d0): 8 mm
• Min. drill hole depth for through fixings (h2): 65 mm
• Max. usable length hef,stand./hef,min. (tfix): 10 / 20 mm
• Anchor length (l): 75 mm
• Thread (ø x length): M8 x 38 mm
• Width across nut: 13 mm
• Installation torque (Tinst): 20 Nm

Applications: Steel constructions, Guard rails, Consoles, Ladders, Cable trays, Machines, Staircases, Façades, Timber constructions.

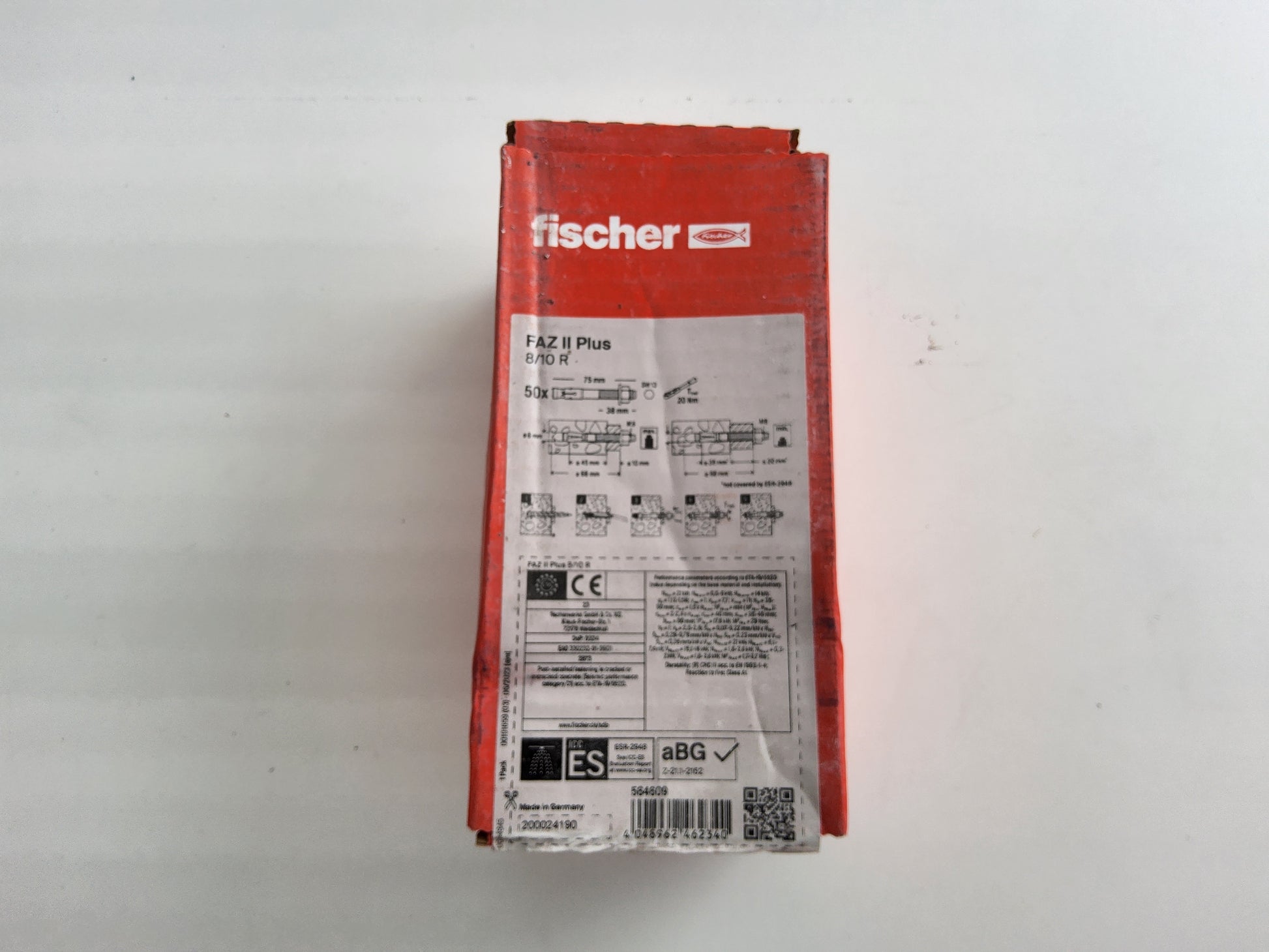

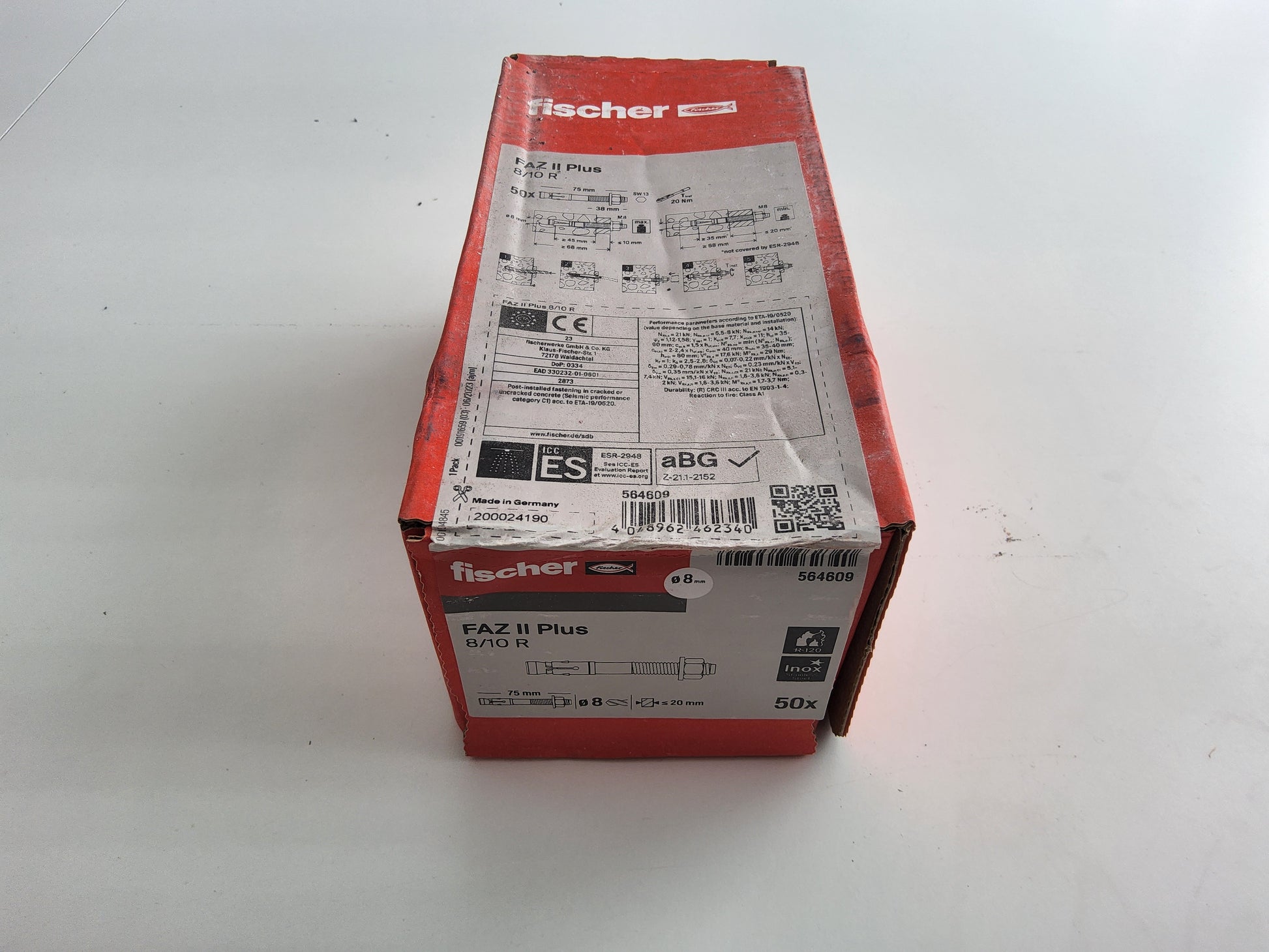

*Packaging on these products may be damaged or showing signs of wear and tear and may be reboxed but all products are in good working condition. These products are non-returnable and non-refundable and once they are gone they are gone.
