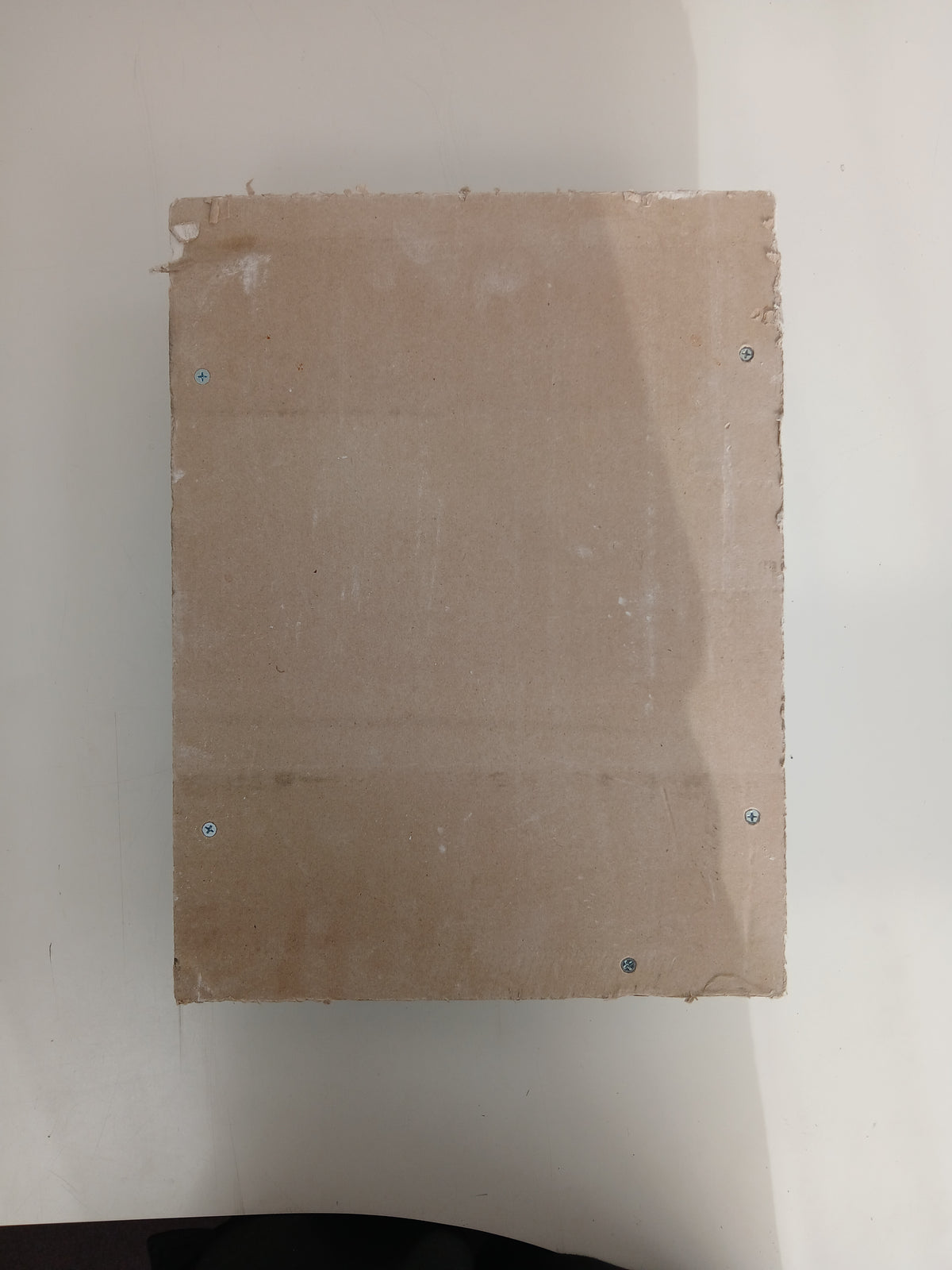

Baffle Box (Quarter Pallet - 13 Boxes)

Plasterboard baffle boxes form enclosures within partition walls or ceilings to maintain fire compartmentation, acoustic separation, or to dress around services such as ductwork, sprinklers, cable trays or pipework.

Baffle boxes appear across a wide range of commercial and fit-out projects, including: Offices, Hotels, Schools, Hospitals, Student accommodation, Residential developments, Commercial refurbishments, Fit-out projects

In ceiling voids, contractors use them around ductwork, fan coil units, air handling units and other mechanical services. Some projects specify them above suspended ceilings where services need separating from the occupied space below.

In wall build-ups, contractors use them where services, openings or penetrations need enclosing, separating or controlling as part of the wider drylining detail.

In service zones, contractors use them to create a formed plasterboard enclosure around mechanical and electrical services running through the building fabric.

The project specification drives the detail. The baffle box is the drylining solution that makes it work on site.

Specifications:

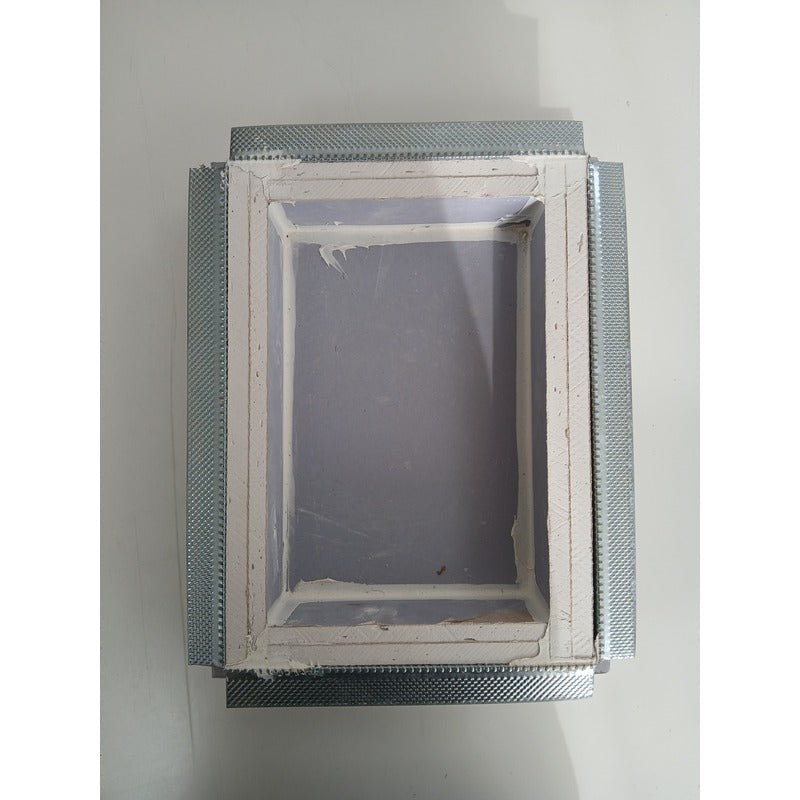

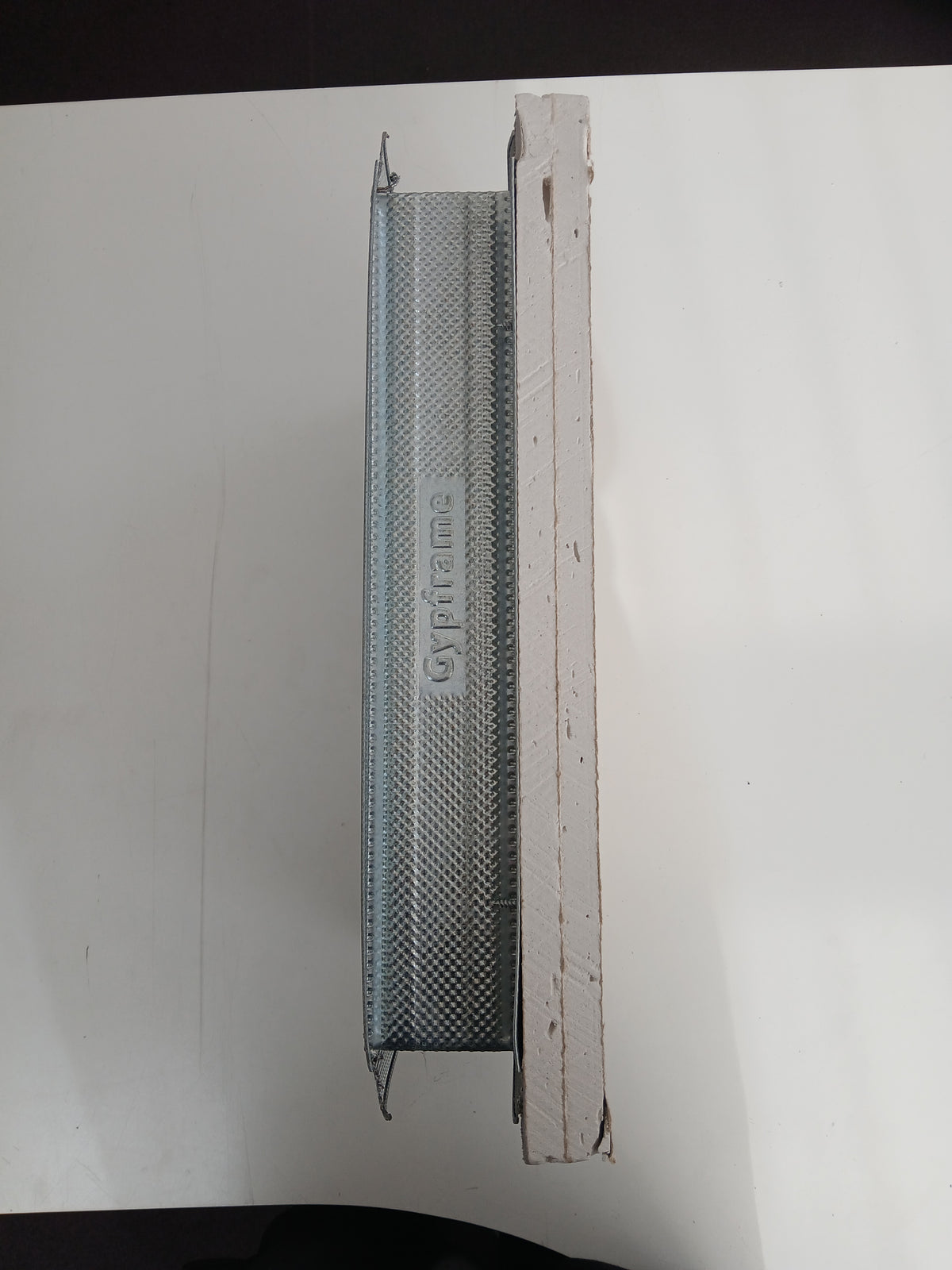

• Size: 300mm x 200mm x 62mm Track x 15mm SoundBloc Plasterboard (x2)
